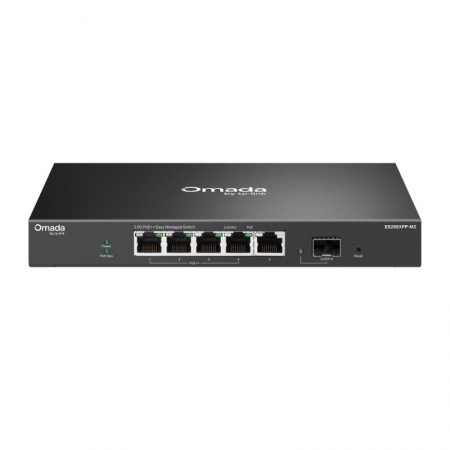

The TP-Link Omada ES206XPP-M2 allows you to provide both data and power to 2.5G devices via a single cable. The switch features five 2.5 Gbit/s RJ45 ports—four of which support PoE++ (802.3af/at/bt) with up to 90W per port and a total PoE budget of 120W—along with one 10 Gbit/s SFP+ slot for uplinking. It is ideal for Wi-Fi 6/7 access points, PoE-powered lighting, NAS systems, and servers.
Reliable PoE
Fast PoE and Perpetual PoE ensure that connected devices remain powered, even immediately after startup or during a switch reboot. PoE Auto Recovery automatically restarts unresponsive PoE-powered devices (in standalone mode; manual intervention is required when in controller mode).
Easy Management
Designed for plug-and-play use, the switch supports VLAN, QoS, and IGMP snooping, which can be configured via the web interface. Using an Omada controller (cloud-based, hardware, or software), you can centrally manage the switch via a web browser or the Omada app.
Free cloud management is available via Omada Central Essentials.
Specifications
- 5x 2.5GbE RJ45 ports, including 4x PoE++ (802.3af/at/bt)
- 1x 10G SFP+ slot
- 120W PoE budget, max. 90W per port
- 45 Gbps switching capacity, 33.48 Mpps forwarding rate
- 16K MAC address table, 640 KB packet buffer, jumbo frames up to 10 KB
- 802.1Q VLAN (32 groups, 4K VIDs), port-based and MTU VLAN
- QoS: port-based, 802.1p, and DSCP; 8 queues; storm control
- Static link aggregation, loop prevention, port mirroring, LLDP, cable diagnostics
- IGMP snooping v1/v2/v3 with fast leave
- Fanless, metal housing, desktop or wall-mountable, security slot
- Dimensions: 209 × 126 × 26 mm; power adapter: 53.5 V DC / 2.43 A
Package Contents
- ES206XPP-M2 switch
- Power adapter and power cord
- Rubber feet
- Installation guide
