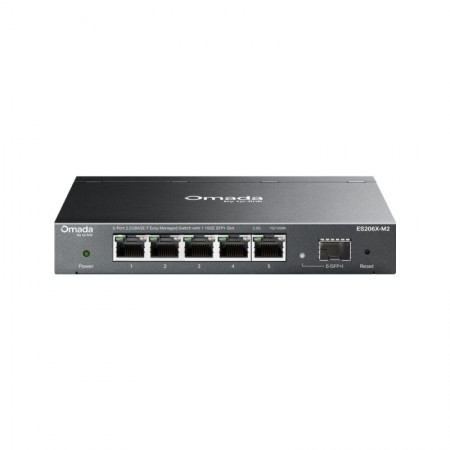

TP-Link Omada Easy Managed 2.5G switch ES206X-M2

The TP-Link Omada ES206X-M2 is a compact, "Easy Managed" switch featuring five 2.5 Gbit/s RJ45 ports and one 10 Gbit/s SFP+ slot. It is designed to connect 2.5G Wi-Fi 6/7 access points, gaming PCs, NAS systems, and servers at full speed, while providing a 10G uplink to the rest of your network.

Simple Management

The switch functions as a plug-and-play device; features such as VLAN, QoS, and IGMP snooping can be configured via the web interface. By using an Omada controller (cloud-based, hardware, or software), you can manage the switch centrally—either through a web browser or the Omada app—benefiting from automatic device discovery, batch configuration, and streamlined firmware updates. Zero-touch provisioning is supported when using the Omada cloud controller.

Free cloud management is available via Omada Central Essentials.

Specifications

• 5x 2.5GbE RJ45 ports (auto-negotiation, auto MDI/MDIX)
• 1x 10G SFP+ slot
• Switching capacity: 45 Gbps; forwarding rate: 33.48 Mpps
• MAC address table: 16K; packet buffer: 640 KB; jumbo frames: up to 10 KB
• 802.1Q VLAN (32 groups, 4K VIDs), port-based VLAN, and MTU VLAN
• QoS: port-based, 802.1p, and DSCP; 8 priority queues; bandwidth and storm control
• Static link aggregation, loop prevention, port mirroring, LLDP, cable diagnostics
• IGMP snooping v1/v2/v3 with fast leave
• Fanless design, metal enclosure, desktop or wall-mountable, security lock slot
• Dimensions: 158 × 100.7 × 25.4 mm; power supply: 12 V DC / 1 A

Package Contents

• ES206X-M2 switch
• Power adapter
• Rubber feet
• Installation guide
