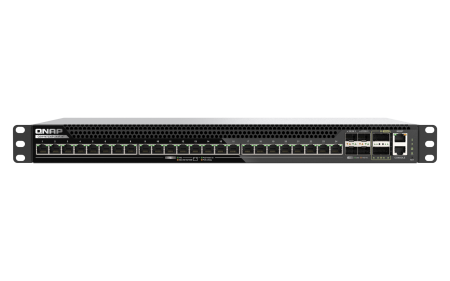

QNAP QSW-M7230P-2X4F24T switch

The QNAP QSW-M7230P-2X4F24T is an L3 Lite managed switch designed for storage environments and backbone networks in medium-to-large organizations. Featuring three speeds (100GbE, 25GbE, and 10GbE) in a single unit and PoE++ support across all 24 RJ45 ports, the switch powers and connects high-demand PoE equipment while linking it to a 100GbE backbone.

Features

• 2x 100GbE QSFP28 and 4x 25GbE SFP28
• 24x 10GbE RJ45 (10G/5G/2.5G/1G/100M)
• IEEE 802.3bt PoE++ on ports 1–24; up to 90 W per port, total PoE budget 800 W
• 1x 1GbE RJ45 management port and RJ45 console port
• Switching capacity 1080 Gbps, non-blocking throughput 540 Gbps
• 32K MAC address table, 9K jumbo frames
• Layer 3 Lite and Layer 2: VLAN, QoS, IGMP Snooping, LACP, MC-LAG, PTP
• Rack-mount model, 44 x 439 x 284 mm (H x W x D), net weight 4.56 kg, internal power supply
