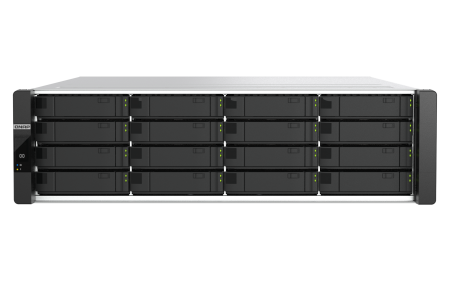

QNAP ES1686Adc-2142IT-128G NAS

The QNAP ES1686Adc-2142IT-128G is a 3U high-availability storage array featuring 16 bays and dual active-active controllers that process I/O simultaneously and transparently take over each other's tasks. Each controller is equipped with an Intel Xeon D-2142IT processor and 64 GB of ECC memory (128 GB total). The system runs on QES with the ZFS file system; a hybrid backplane allows each bay to accept either SAS 12Gb/s or U.3 NVMe drives.

Features

• Dual controllers, active-active configuration
• Per controller: Intel Xeon D-2142IT 8-core, 1.90 GHz (burst up to 3.0 GHz)
• Per controller: 64 GB RDIMM DDR4 ECC, 8 slots;
Maximum of 512 GB per controller, 1 TB total
• 16 bays for 3.5" SAS 12Gb/s (compatible with SAS 6Gb/s); also supports 2.5" SAS HDD/SSD and 2.5" dual-port U.3 NVMe SSD
• Per controller: 4x 10GbE SFP+ and 3x 2.5GbE (one of which is for remote management)
• Per controller: 2x PCIe Gen3 x8 slots
• RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, and Triple Mirror; QES 2.2.1
• Redundant, hot-swappable 700W power supply; dimensions 132 x 446.2 x 587.75 mm (H x W x D), net weight 23.82 kg
