QNAP TS-h1886XU-RP-R2-D1622-16G NAS

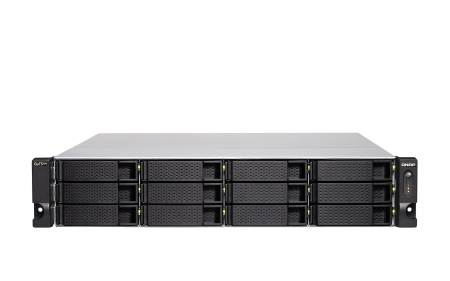

The QNAP TS-h1886XU-RP-R2-D1622-16G is the R2 version of the TS-h1886XU-RP: a 2U rackmount NAS with twelve 3.5" bays at the front and six 2.5" SSD slots at the rear. An Intel Xeon D-1622 quad-core with 16 GB ECC memory forms the base, with QuTS hero and the ZFS file system as the operating system. Two 10GbE SFP+ ports via a pre-installed PCIe card and four 2.5GbE ports are included as standard; optionally, a High Availability cluster can be formed with a second unit.

Features

• Intel Xeon D-1622, 4 cores, burst up to 3.2 GHz, AES-NI encryption
• 16 GB ECC DDR4 UDIMM, 4 slots, expandable to 128 GB (4x 32 GB)
• Front 12x 3.5" SATA 6Gb/s, rear 6x 2.5" SATA 6Gb/s
• 4x 2.5GbE and 2x 10GbE SFP+ (SmartNIC, pre-installed PCIe card)
• 3 PCIe slots (Gen2 x4, Gen3 x4, Gen3 x8/x4), one occupied by the 10GbE card
• 2x USB 3.2 Gen 1
• 2x 550W power supply (100-240V), 3x 60 mm fan
• Dimensions 88.6 x 432 x 511.2 mm (H x W x D), net weight 14.5 kg
