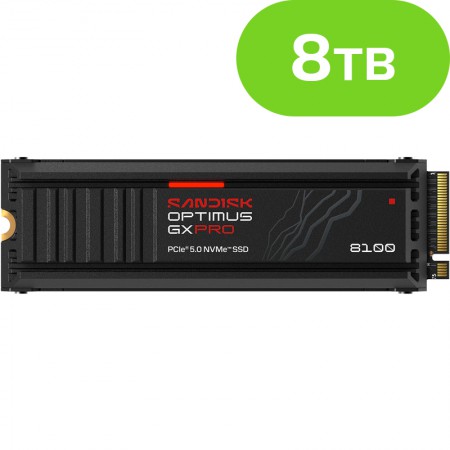

8TB SanDisk Optimus GX PRO 8100 PCIe 5.0 M.2 NVMe SSD heatsink

The SanDisk Optimus GX PRO 8100 with heatsink is an M.2 2280 NVMe SSD with a PCIe 5.0 x4 interface. This 8TB version has a low-profile anodized aluminium heatsink with RGB LED and, according to the datasheet, is backwards compatible with PCIe 4.0 and 3.0. At 11.25 mm it is slightly thicker than the smaller capacities.

Features

• Heatsink for 5.5x longer sustained performance
• Integrated SanDisk nCache 4.0 technology
• Low-profile anodized aluminium with RGB LED
• Backwards compatible with PCIe 4.0 and 3.0
• Encryption: TCG Opal 2.02

Specifications

• Capacity: 8TB
• Interface: PCIe 5.0 x4, NVMe 2.0
• Form factor: M.2 2280 (2280-D5-M)
• NAND: SanDisk TLC 3D CBA (8th generation)
• Sequential read: up to 14,900 MB/s
• Sequential write: up to 13,200 MB/s
• Random read: up to 2.2 million IOPS
• Random write: up to 2.4 million IOPS
• Endurance: 4,800 TBW
• MTTF: 1.75 million hours
• Dimensions: 80 x 25 x 11.25 mm
• Weight: 30.4 g
• Warranty: 5 years limited
