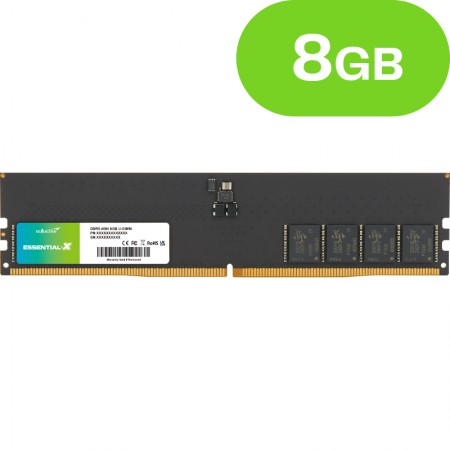

8GB Exascend Essential-X DDR5 U-DIMM 4800MT/s ES08G5U4800AU

The Exascend Essential-X 8GB is a DDR5 unbuffered long DIMM (U-DIMM) for desktops and workstations. 8GB is a suitable capacity for a basic configuration or for supplementing an existing system.

The module operates at DDR5-4800 (2400MHz clock) with JEDEC-standard SPD timing and uses the JEDEC-standard 1.1V ± 0.06V power supply. It features on-die ECC and 288 gold-plated contacts; the module is RoHS-compliant and halogen-free.

Specifications

• Capacity: 8GB
• Type: DDR5 unbuffered
• Form factor: U-DIMM, 288-pin, gold-plated contacts
• Speed: DDR5-4800 (2400MHz clock)
• Timing: CL40 (40-40-40), JEDEC-standard SPD
• Organization: 1 rank
• Voltage: VDD/VDDQ 1.1V (± 0.06V), VPP 1.8V
• Error correction: on-die ECC
• PCB dimensions: 133.35 × 31.25 mm, thickness 1.27 mm
• Operating temperature: 0 to 85°C (DRAM case temperature)
• Environmental: RoHS-compliant and halogen-free
