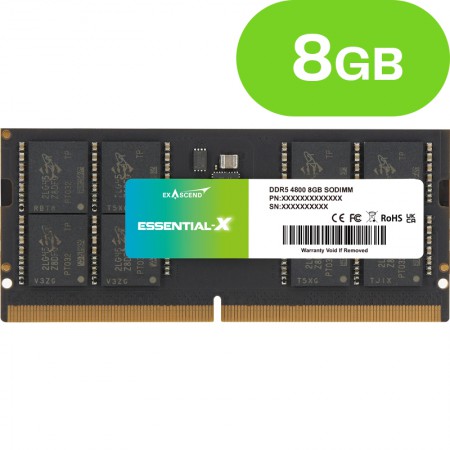

8GB Exascend Essential-X DDR5 SO-DIMM 4800MT/s ES08G5S4800AU

The Exascend Essential-X 8GB is a DDR5 unbuffered SO-DIMM memory module designed for laptops and compact systems. With 8GB of capacity, it allows you to upgrade your system for everyday tasks such as office work and web browsing.

The module operates at DDR5-4800 (2400MHz clock speed) with JEDEC-standard SPD timing and a JEDEC-standard operating voltage of 1.1V. It features on-die ECC and gold-plated contacts, and is RoHS-compliant and halogen-free.

Specifications

• Capacity: 8GB
• Type: DDR5 unbuffered
• Form factor: SO-DIMM, 262-pin, gold-plated contacts
• Speed: DDR5-4800 (2400MHz clock)
• Timing: CL40 (40-40-40), JEDEC-standard SPD timing
• Organization: 1 rank, 1024M x 64
• Voltage: VDD/VDDQ 1.1V ± 0.06V, VPP 1.8V
• Error correction: On-die ECC
• PCB dimensions: 69.6 × 30.0 mm, thickness 1.20 mm
• Operating temperature: 0 to 85°C (DRAM case temperature)
• Environmental: RoHS-compliant and halogen-free
