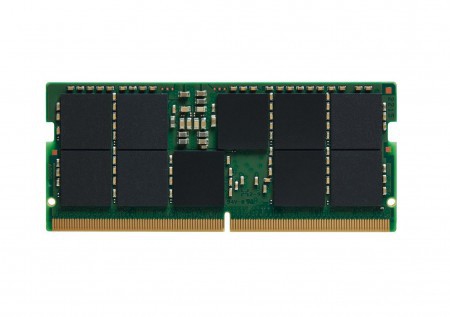

KINGSTON 48GB 5600MT/s DDR5 ECC CL46 SODIMM 2Rx8 Hynix M

Kingston's KSM56T46BD8KM-48HM is a 6G x 72-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

x72 ECC (x36, 2 independent I/O sub channels)

32 internal banks

Hard/Soft Post Package Repair

Sideband access with I3C/I2C

PCB: Height 1.18” (30mm)

RoHS Compliant and Halogen-Free
