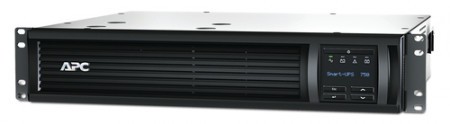

APC Smart-UPS 750VA LCD RM 2U 230V (SmartConnect)

After ordering exp. at our warehouse 22/05/2019.

Always stay online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted outages from, for example, a PC, server or switch. With the supplied Powershute software you can even have critical IT hardware automated and controlled shutdown. This prevents data loss, downtime and physical damage to hardware.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage, among other things, caused by lightning. This APC emergency power supply is ideally suited for (small) business use.

Battery life
You can easily read the expected battery life in the runtime chart, you can find it between the product images. You can easily see how long the UPS supplies emergency power at a certain load.

SmartConnect
With the help of the SmartConnect ethernet port you connect the Smart-UPS easily with your network and you can easily monitor it remotely. This can be done via the secure APC mobile web portal or via integration with Kaseya or Connectwise.

Network Management Card
In addition, the UPS can use the optional APC Network Management Card (AP9630 / AP9631) to send a shutdown signal via the network to multiple physical and / or virtual servers and is easy to manage remotely via snmp. Of course, the ups can also be operated by means of the LCD screen.

Extend the lifespan
The internal battery cartridge (APCRBC123) can be replaced simply, safely and independently by the user. This without having to switch off the APC SMT750RMI2UC or connected equipment. This way you can easily and cheaply extend the life of the APC Smart-UPS and your equipment will always stay online.

Power
Output power capacity 750 VA
Output power 500 W
Input operation voltage (min) 151 V
Input operation voltage (max) 302 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Power supply input frequency 50/60 Hz
Surge energy rating 459 J
Efficiency 97.7%

Ports & interfaces
AC outlet types C13 coupler
AC outlets quantity 4 AC outlet(s)
USB port Yes
Serial interface Yes
Serial interface type RJ-45
Number of output IEC jumpers 2
SmartSlot Yes

Battery
Battery technology Sealed Lead Acid (VRLA)
Battery recharge time 3 h
Typical backup time at half load 16 min
Typical backup time at full load 5.5 min
Replacement battery cartridge APCRBC123
Hot-swap battery Yes
Cold start Yes
Automatic battery test Yes
Battery replacement alarms Audible,LED
Battery life (max) 5 year(s)
Battery capacity 168 VAh

Design
Form factor Rackmount
Product colour Black

Performance
UPS topology Line-Interactive
Hold time (max) 2 ms
Surge protection Yes
Waveform Sine
Automatic Voltage Regulation (AVR) Yes
Auto-restart Yes
Noise level 42 dB
LED indicators Yes
Audible alarm(s) Yes

Technical details
Input connections IEC-320 C14

Operational conditions
Operating temperature (T-T) 0 - 40C
Storage temperature (T-T) -15 - 45C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m

Certificates
Certification CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI

Weight & dimensions
Width 432 mm
Depth 406 mm
Height 89 mm
Weight 17.3 kg
Package width 546 mm
Package depth 584 mm
Package height 241 mm
Package weight 21.2 kg

Packaging content
Quick installation guide Yes
Cables included RS-232,USB cable
Rack mount kit Yes
Software CD Yes


Specifications

Brand: APC
Model: SMT750RMI2UC
Dimensions: 432 x 406 x 89 mmj
Weight: 17.3 kg
EAN code: 0731304340324
Productcode: SMT750RMI2UC
Warranty: 2 jaar
